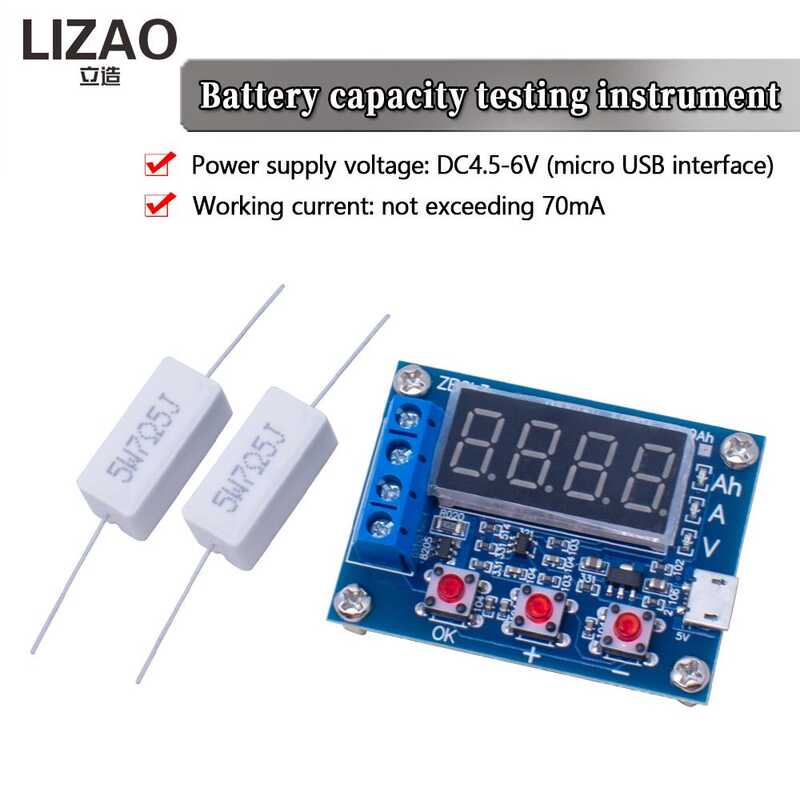

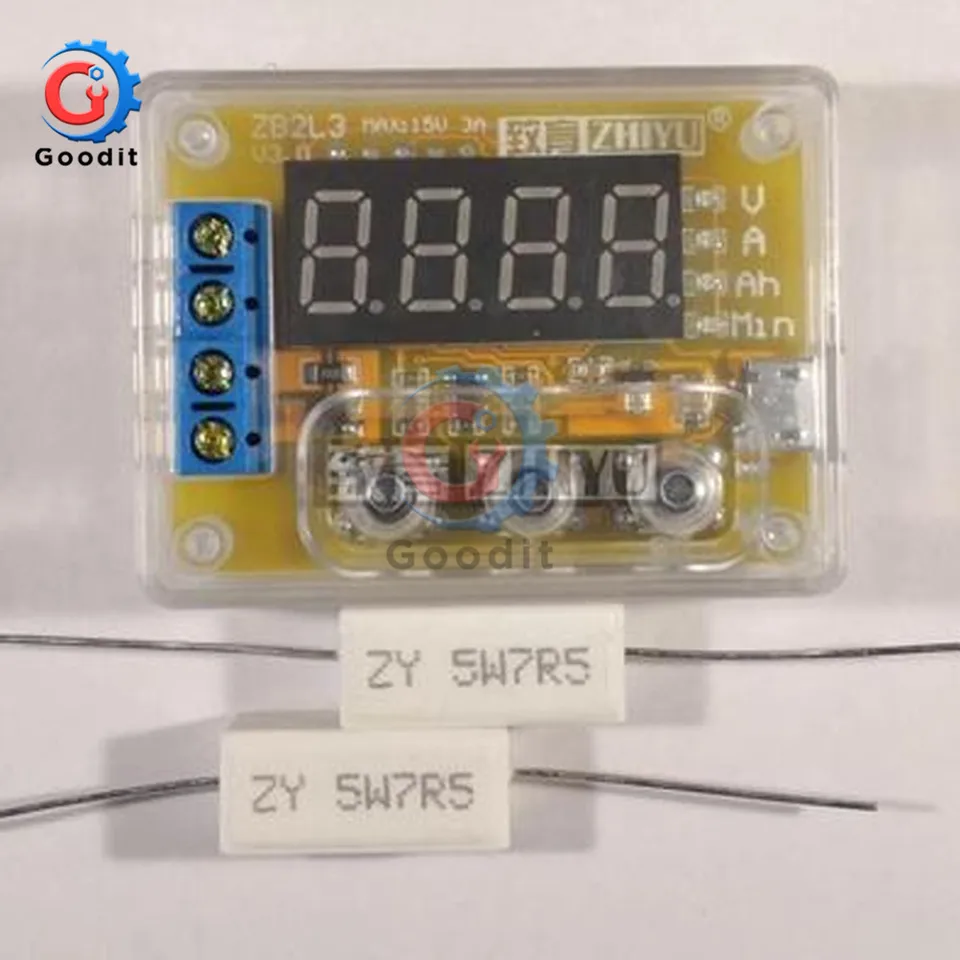

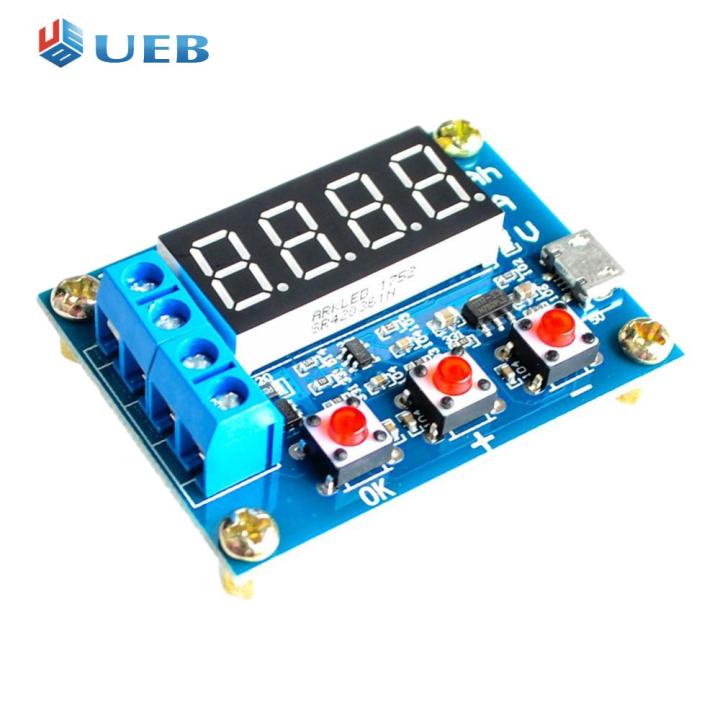

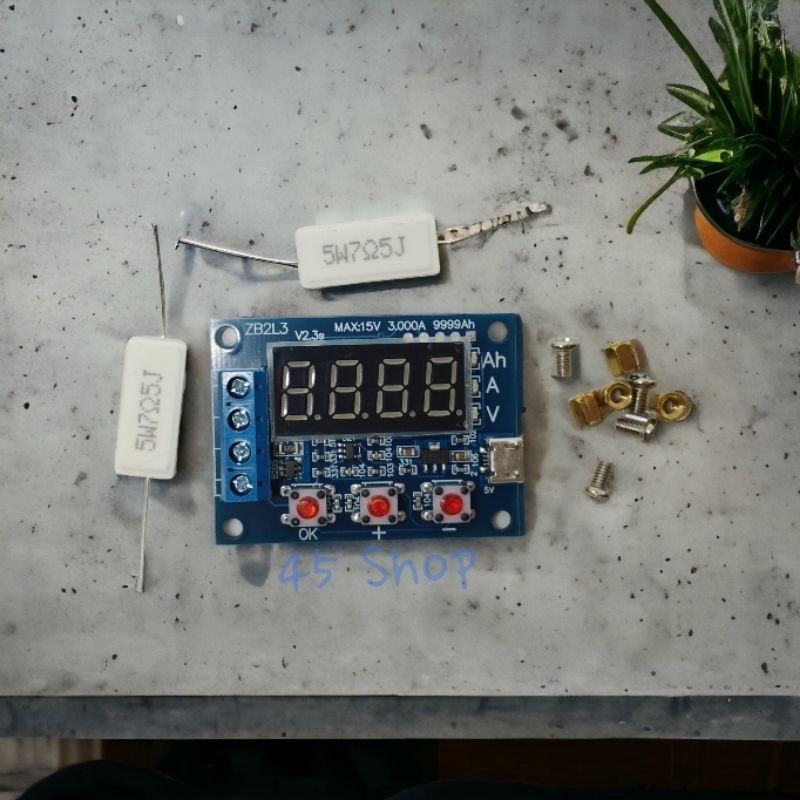

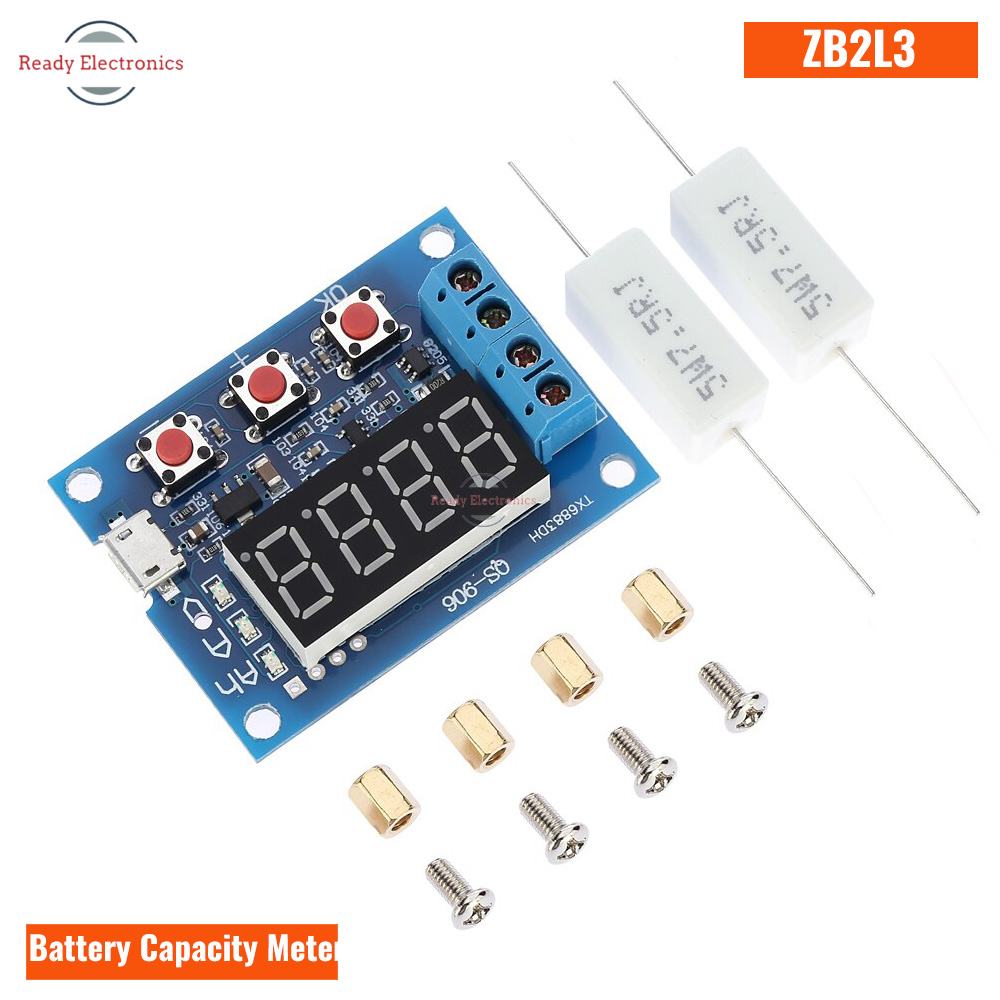

Zb2l3 Test ZB2L3 LI-ION LITHIUM Lead-acid Battery Capacity Meter Discharge Tester Analyzer £5.93

Dettagli prodotto

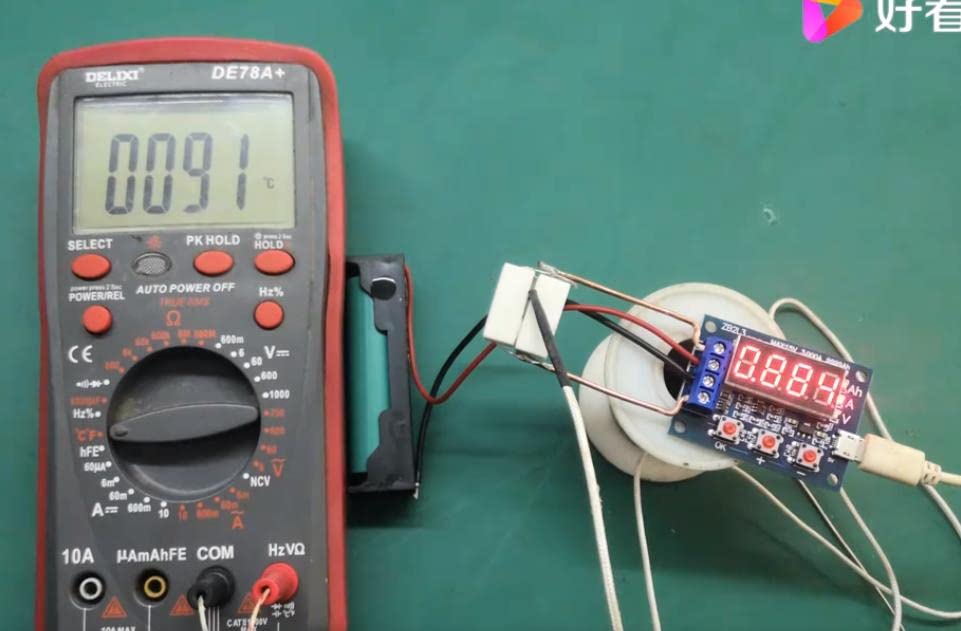

Power supply voltage: DC4.5-6V (micro USB interface) ; Working current: less than 70mA. Need to develop artificial termination voltage only when the battery voltage display state by pressing + or - buttons to modify the termination voltage display beginning with P, behind the representative voltage resolution 0.1V, set up after pressing the OK start testing. 4. After the start of the test the tester will control the load of the electronic switch is turned on, the test data shows that the process will release capacity (Ah), current discharge current (A) and battery voltage (V) between the wheel was. You need to insert some work to connect the battery, but it works without any problems. The resistor gets a little hot, but this is normal because it flows through electricity of about 0.5A, giving a power slightly below 2W. This power is divided on the r Zb2l3 Test ZB2L3 LI-ION LITHIUM Lead-acid Battery Capacity Meter Discharge Tester Analyzer £5.93 - UK Zb2l3 Battery The maximum measurement error voltage: 1%+0.03V ; The maximum measurement error of current: 2%+-0.010A. The discharge voltage: 1.00V-15.00V resolution 0.01V ; Termination voltage range: 0.5-11.0V. if you are short connected with the input terminal (absolute 0V) will display 0. To understand the principle can consult the superposition theorem in electrical engineering. When the battery voltage reaches the set cut-off voltage, load control switches off the tester display data stays in capacity (Ah) and above and the corresponding indicator flashes quickly together, now displays the actual capacity of the battery is discharging capacity, about the press OK to terminate flashing allows stable data display, press again OK button to return to the power-on state can just replace the battery test the next section ...... Error codes and their meanings: Err1: battery voltage is above 15V Err2: battery voltage is lower than the termination voltage Err3: Battery can not afford to load or discharge current line too much resistance Err4: overcurrent (current exceeds 3.1 Note: this circuit in order to improve the voltage measurement accuracy, specially designed DC bias. Load connected to the output of the positive and negative output, to work through the tester micro USB power supply (not available desktop or laptop USB powered), then the battery voltage. 3. Direct start test need only one press of the OK button, the tester can automatically develop an appropriate termination voltage of the battery full charge voltage, and will start flashing after the test three times.

ZB2L3 LI-ION LITHIUM Lead-acid Battery Capacity Meter Discharge Tester Analyzer £5.93 - UK
