Pistola Barcode QR /1D/2D/code Scanner V3.0 Bar Code Scan Recognition Module Serial Communication UART Interface USB Keyboard Input Barcode Scanner Module Scanning Time

Dettagli prodotto

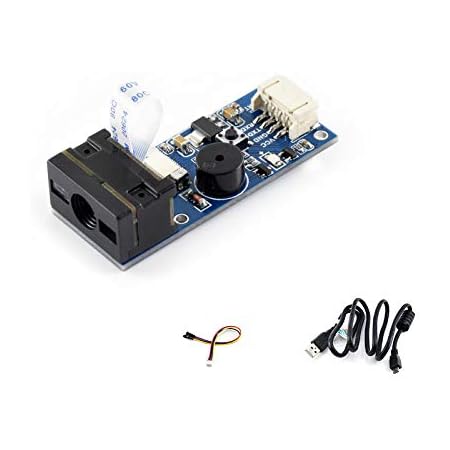

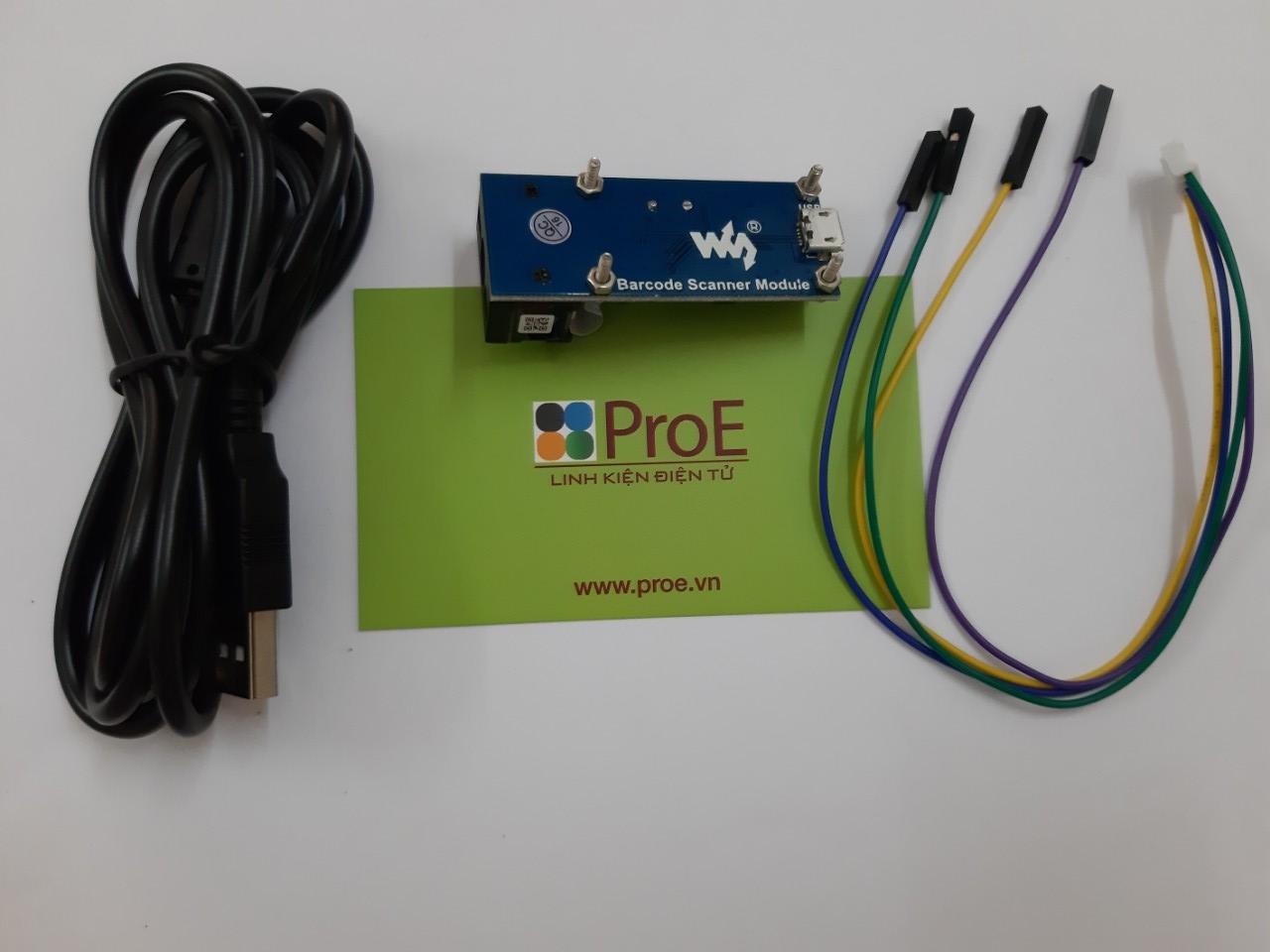

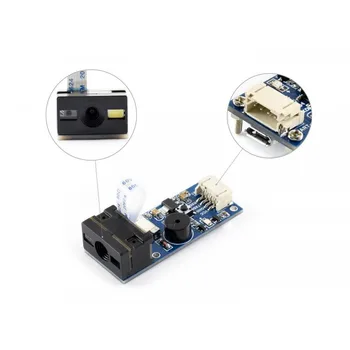

Decodes 1D codes: Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar(RSS) com/wiki/Barcode_Scanner_Module Pistola Barcode QR /1D/2D/code Scanner V3.0 Bar Code Scan Recognition Module Serial Communication UART Interface USB Keyboard Input Barcode Scanner Module Scanning Time This is a small Waveshare Barcode Scanner Module 1D/2D Codes Reader, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and accurately Through the onboard USB and UART interface, it can be directly plugged into a computer, or be easily integrated to kinds of devices due to its small form factor. Decodes 2D codes: QR code, Data Matrix, PDF417 Light source: white Easy to use, requires no knowledges of image recognition Operating current: 135mA (scanning), 58mA (standby), 2mA (sleep) Field of view: 28° (horizontal), 21.5° (vertical) Dimension: 53.3mm x 21.4mm PACKAGE CONTENT Barcode Scanner Module x1 USB type A plug to micro B plug cable x1 PH2.0 4Pin x1 Overview This is a small 1D/2D codes reader, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and accurately. Communication interface: UART, USB Decodes various common 1D/2D codes such as Barcode, QR code etc. Features Easy to use, requires no knowledges of image recognition
