VOKTTA XL4016 DC-DC PWM Adjustable Regulator 200W High Power DC Step Down Conversion Module 8a I3190042517

Produktmeinungen:

(5)

Consegna express con DHL GoGreen se ordini entro le prossime 24 ore

Consegna in 1-2 giorni lavorativi
Spedizione gratuita a partire da 49,90 €
62 giorni di reso gratuito

Andamento prezzo

Dettagli prodotto

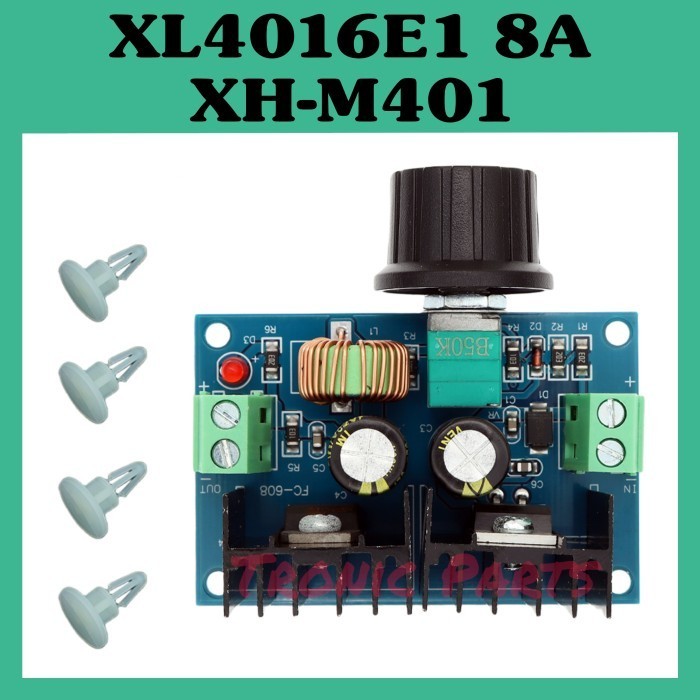

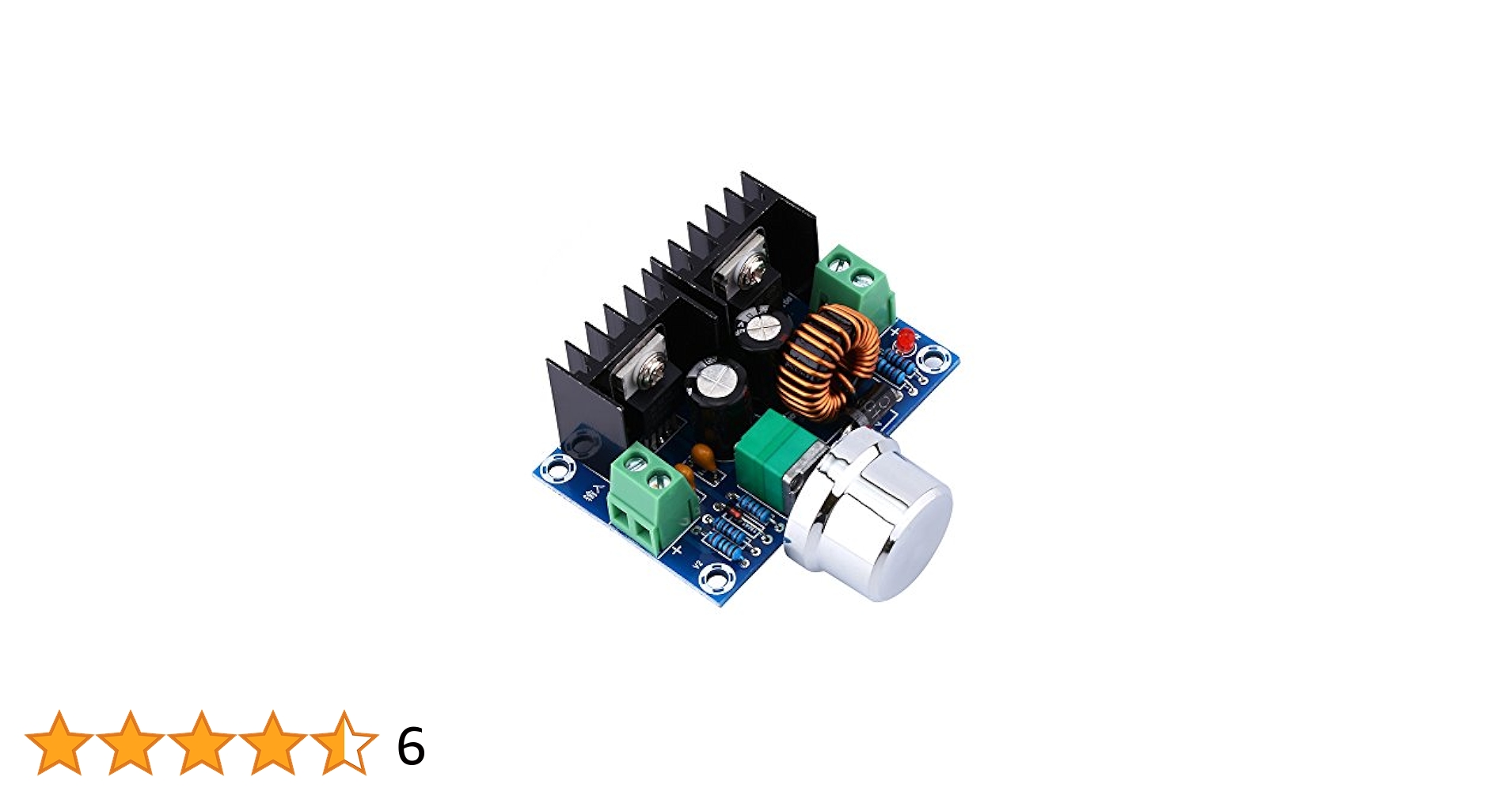

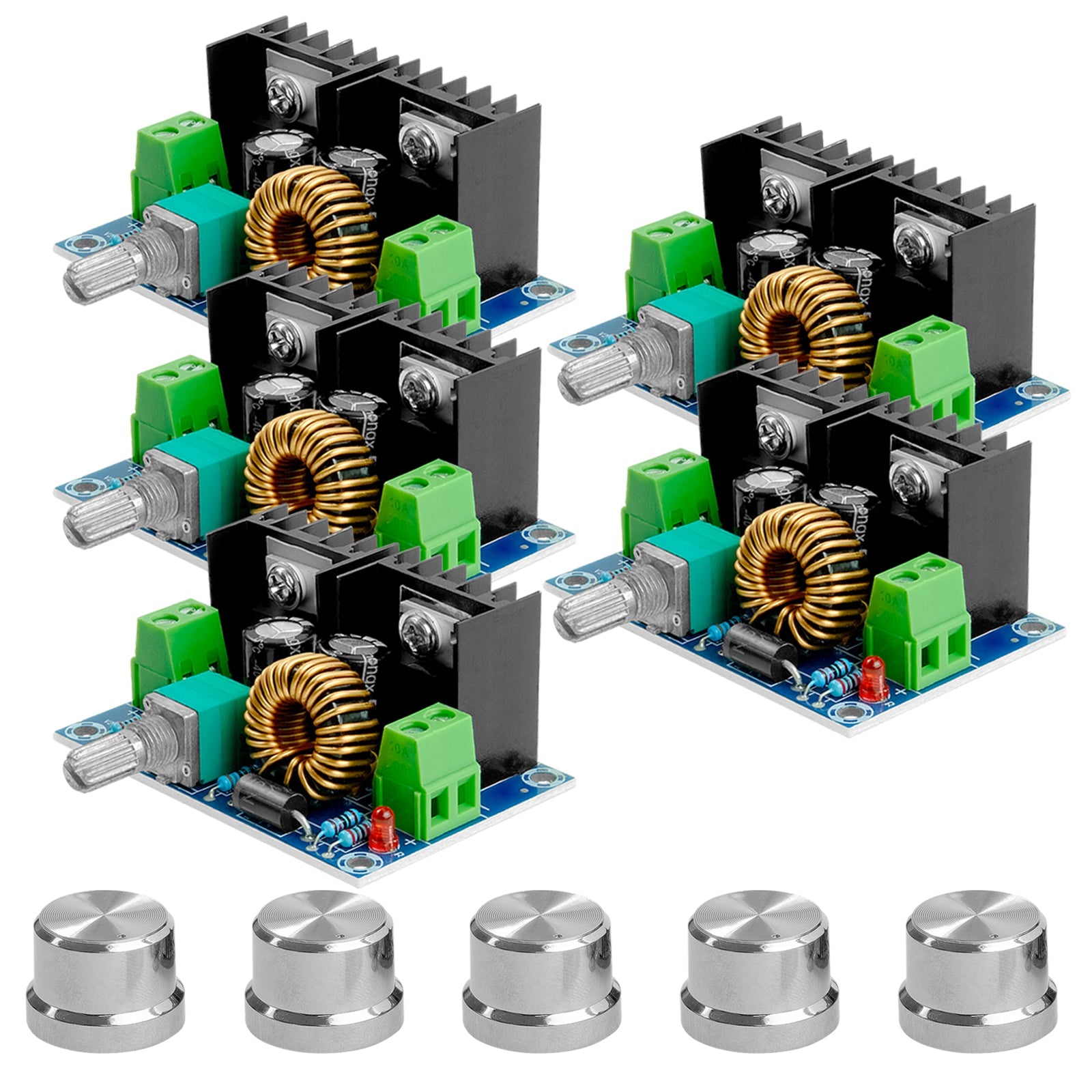

Dc Dc VOKTTA XL4016 DC-DC PWM Adjustable Regulator 200W High Power DC Conversion Module 8a I3190042517 Step Down Max 8A 200W DC-DC Step Down Buck Converter Power Supply XL4016 PWM Adjustable 4 to 40V To 1.25 to 36V Step-Down Board Module Descriptions: Product name: DC step-down module ConverterVoltage regulating mode: PWM modulationInput voltage: DC4-40VOutput voltage: DC1.25-36VMax output current: 8A (more than 5A for long time use,need Fan if over 5A)Max power: 200WConversion efficiency: 94 percentSwitching frequency: 180KHZDimensions: 61-41-27mmNote: Chip: switching regulator Regulating chip XL4016 with Over current protection, Over temperature protection,Short circuit protectionWhen reach maximum output current 8A, need to add fan. DC DC Step Down Buck Converter Power Supply Module XL4016 PWM Adjustable 4 40V To 1.25 36V Step Down Board Module Max 8A 200W Long term work recommended about 5A Panel Mounting:1. Drill holes in the Panel 7mm2. Extended potentiometer handle3. Lock screw sleeve upper knob Package Contains: 1pc x 200W XL4016 DC-DC Max 8A Step Down Buck Converter When reach maximum output current 8A, need to add fan. Long term work recommended about 5A 【Easy operation】Chip: switching regulator Regulating chip XL4016 with Over current protection, Over temperature protection,Short circuit protection. 【200WXL4016】Max 8A 200W DC-DC Step Down Buck Converter Power Supply XL4016 PWM Adjustable 4-40V To 1.25-36V Step-Down Board Module.
